Large Format Image Scanner

A0 Professional Large Format Graph Scanner

Multi-purpose A0 Large-size Flatbed Scanner

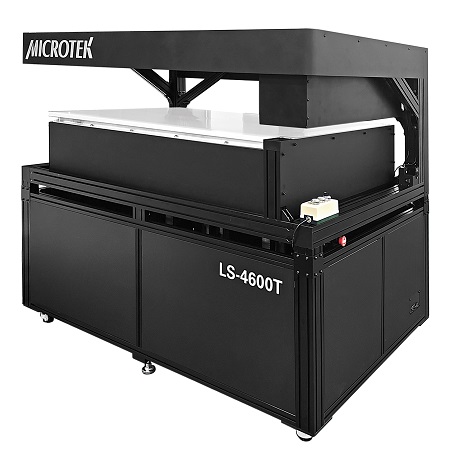

Microtek’s LS-4600 is a scanner which is exclusively designed for capturing large-size pictures. It is equipped with a large A0 scan bed, supporting scanning area up to 841 mm x 1189 mm; therefore, you can process scanning of large-size materials easily. Adopted with a high-resolution color linear CCD, generation 600 dpi resolutions and 24-bit color depth in every inch, LS-4600 delivers fantastic experiments of image scanning to you and guarantees superior color quality at the same time. There is no doubt that LS-4600 is your first and best choice for digitizing large-size materials, such as old pictures, books and historical painting albums.

Features

• Scanning area is up to A0 size (841 mm x 1189 mm)
• Single image sensor prevents occurring of errors for image stitching
• Two-way LED light source decreases shadows of folded materials effectively
• An optional board is exclusively designed for flattening large-size drawings
• Trolley with attached casters for easy movement
• Optional professional ScanWizrd Cubi/DTG scanning software meets various demands

LS-4600 Brochure

Specifications
Optical Resolution： 600 dpi
Image Sensor Type： CCD
Light Source： LED
Color Modes： Color / Grayscale / B&W
Bit-Depth： 48-bit input
Scanning Area： 841 mm x 1189 mm (33.1” x 46.8”)
Scanning Speed： 60 sec @300 dpi, A0/color
Dimensions (LxWxH)： 1690 x 1100 x 430 mm (w/o trolley)
Weight： About 170 kg (w/o trolley)
OS Support： Windows
